Step out of the box with Trandar Ecophon acoustic ceiling

After we've mentioned why Ecophon is different from general ceiling types, many people might have cleared their doubts

for now. This time, we would like to cater to architects, designers, and stylists, as there have been many inquiries

about the specifications and features of Trandar Ecophon. So today, we've gathered them in detail, model by model!

Trandar Ecophon is considered a material that can perfectly meet design needs

as it is a smooth, elegant, sophisticated, and modern type of material, inspired

by the smooth surface of Scandinavian snow.

Trandar Ecophon Acoustic Ceiling

Trandar Ecophon New Generation of Acoustic Ceilings

Akutex Technology

Trandar Ecophon is made with Akutex fibers, providing a smooth and consistent surface with high sound absorption.

It can effectively meet the needs of architects and designers for structural design.

3RD Techonology

Trandar Ecophon is made from 83% recycled materials, which helps reduce air pollution during production and

use, as it is synthesized from plants instead of petroleum.

Made in Sweden

Trandar Ecophon is manufactured and imported directly from Sweden. It is an acoustic material designed to be

especially smooth, elegant, and sophisticated.

Up to 2 times more sound absorption

Trandar Ecophon absorbs sound up to 2 times better than general materials, with a high sound absorption coefficient of NRC = 0.85-1.0.

It is considered to absorb almost 100% of sound compared to common convoluted acoustic panels, according to the comparison table.

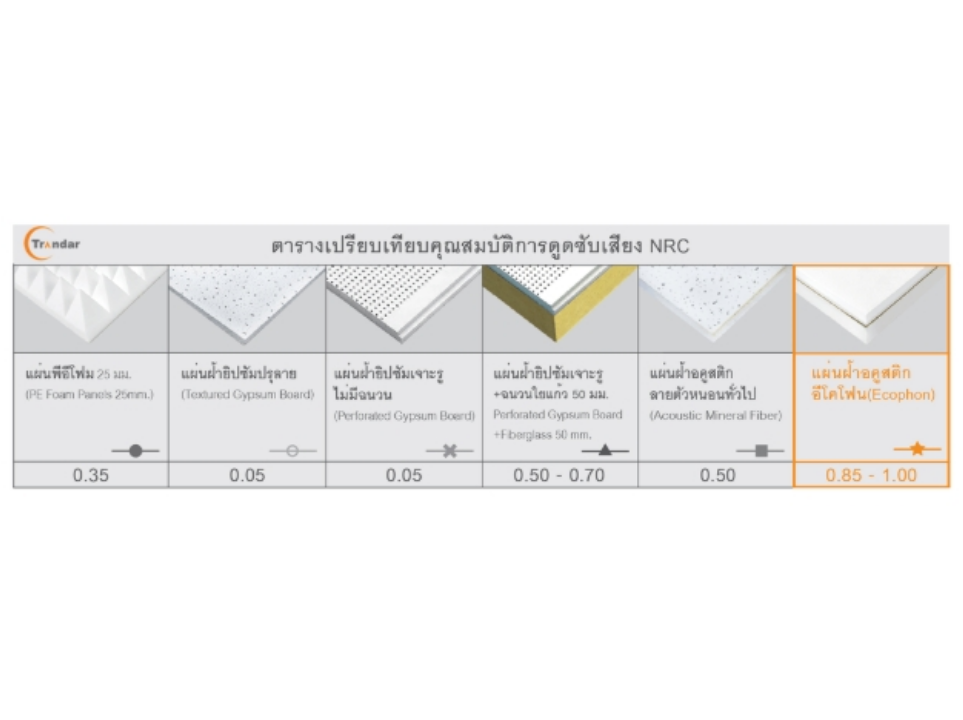

NRC Sound Absorption Properties Comparison Table

Trandar Ecophon comes in many models, each with its own unique features and characteristics. These can be chosen to help solve noise issues to suit specific locations or structural limitations.

Trandar Ecophon Focus A Model

Trandar Ecophon Focus A Model

Size 1200x1200x20mm. Has a sound absorption coefficient (NRC) of not less than 0.85. Suitable for installation in

office buildings, educational institutions, shopping malls, hotels, hospitals, airports, cinemas,

home theaters, karaoke rooms, and conference rooms, etc.

Trandar Ecophon Focus Dg Model

Trandar Ecophon Focus Dg Model

Size 600x600x20mm. Installed with Trandar System T-bar structure. A new dimension of acoustic material

for architects and interior designers who want to add dimension to ceiling designs and desire

a design different from the usual. It has a sound absorption coefficient (NRC) of not less than 0.90. The panel is easy to install, with an approximate weight of 3-4 kg/sq.m.

Trandar Ecophon Focus Ds Model

Trandar Ecophon Focus Ds Model

Size 1200x1200x20mm. Has a sound absorption coefficient (NRC) of not less than 0.90. The material has a smooth surface,

effectively meeting the needs of new-generation architects and designers. The panels are easy, convenient, and quick to install, as they are a

concealed grid system where every panel can be removed. Approximate weight is 3-4 kg/sq.m.

Trandar Ecophon Focus E Model

Trandar Ecophon Focus E Model

Size 1200x1200x20mm. Has a smooth and fine surface, capable of good sound absorption and heat insulation. It has

a sound absorption coefficient (NRC) of not less than 0.90. Used as a ceiling decoration material to give a smooth and stylish look. Installed

by laying on a Connect System (T-bar) grid.

Trandar Ecophon Focus F Model

Trandar Ecophon Focus F Model

Size 600x1200x20mm. Installed with C-line frame or laminated with smooth fabric. It is a concealed ceiling system

(conceal system). The V-Groove panel has a depth of 4 mm. It has a sound absorption coefficient (NRC) of not less than 0.75.

Even when laminated over existing smooth plaster, it is easy to install, suitable for acoustic problem-solving in rooms where smooth plaster has already been installed.

The material has an approximate weight of 2.5 kg/sq.m.

Trandar Ecophon Gedina E Model

Trandar Ecophon Gedina E Model is installed with Trandar System T-bar frames. It has a smooth surface, different from general acoustic materials. It can absorb sound and insulate heat. Made from Inorganic Wool using 3RD Technology, and the surface uses Akutex T Technology, which is a technology developed to make the ceiling panel's surface fine and pore-free,

giving a soft and pleasing aesthetic.

Akusto Wall Panel A

Akusto Wall Panel A Sound Absorbing Wall can absorb sound and insulate heat well. It is used as a decorative wall material to add style. It is easy to remove and install, lightweight, and available in 2 styles: Texona, which comes in a variety of colors, and Super G, which has high flexibility and impact resistance. Suitable for installation in home theaters, classrooms, gymnasiums, sports arenas, cinemas, etc.

Akusto Wall Panel C

Akusto Wall Panel C Sound Absorbing Wall can absorb sound and insulate heat well. It is used as a decorative wall material to add style. It is easy to remove and install, lightweight, and available in 4 styles: Akutex FT, Texona with a variety of colors, Super G R with high flexibility and good impact resistance, and Muralis with various patterns. Suitable for installation in home theaters, classrooms, gymnasiums, sports arenas, cinemas, etc.

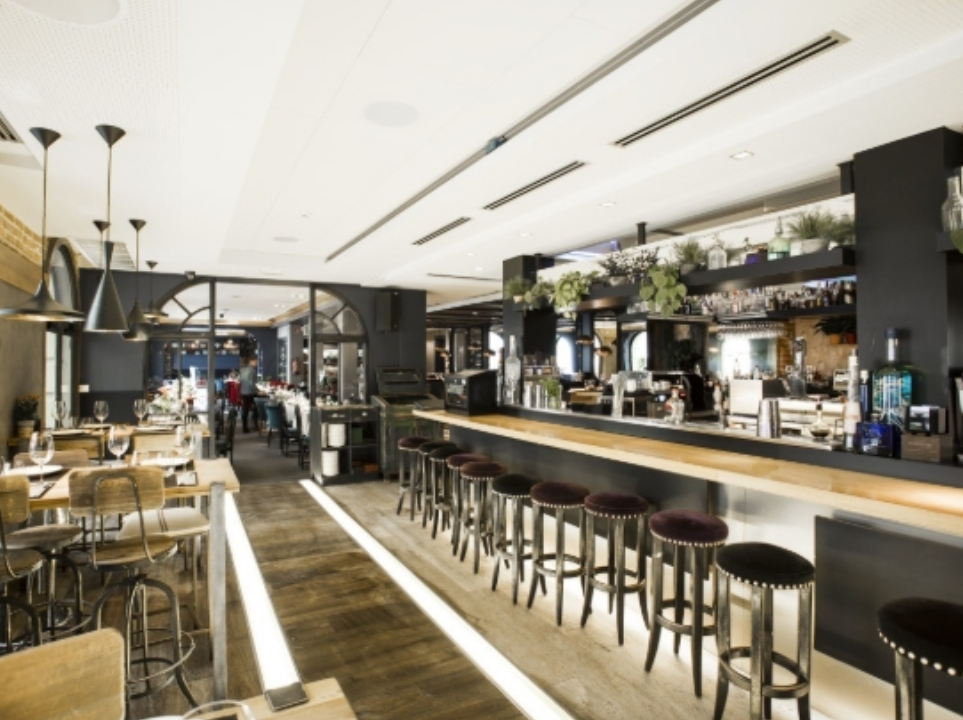

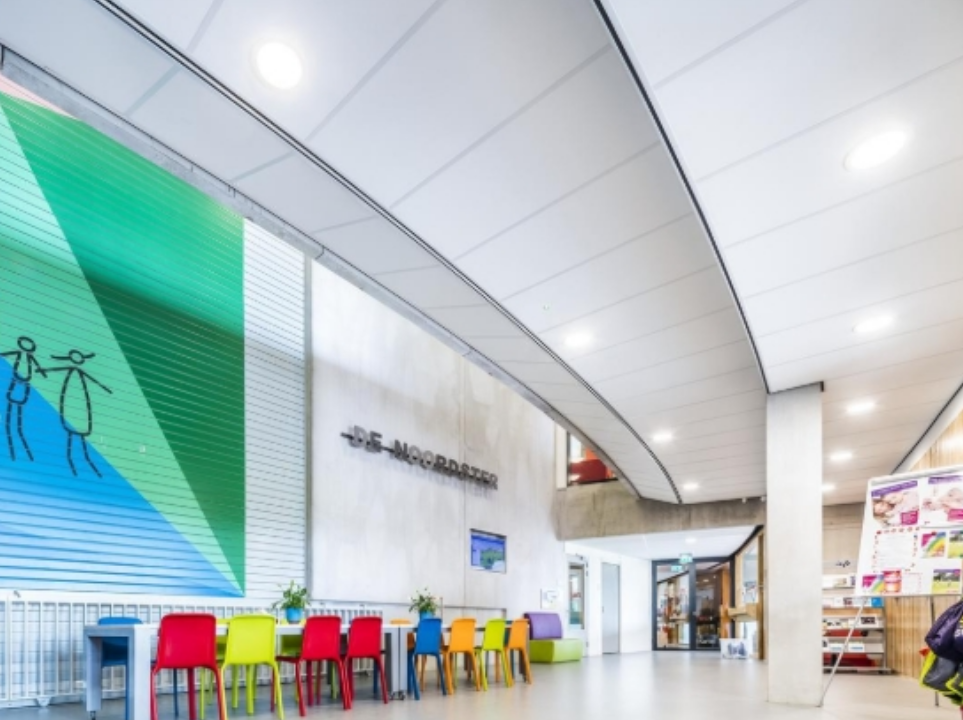

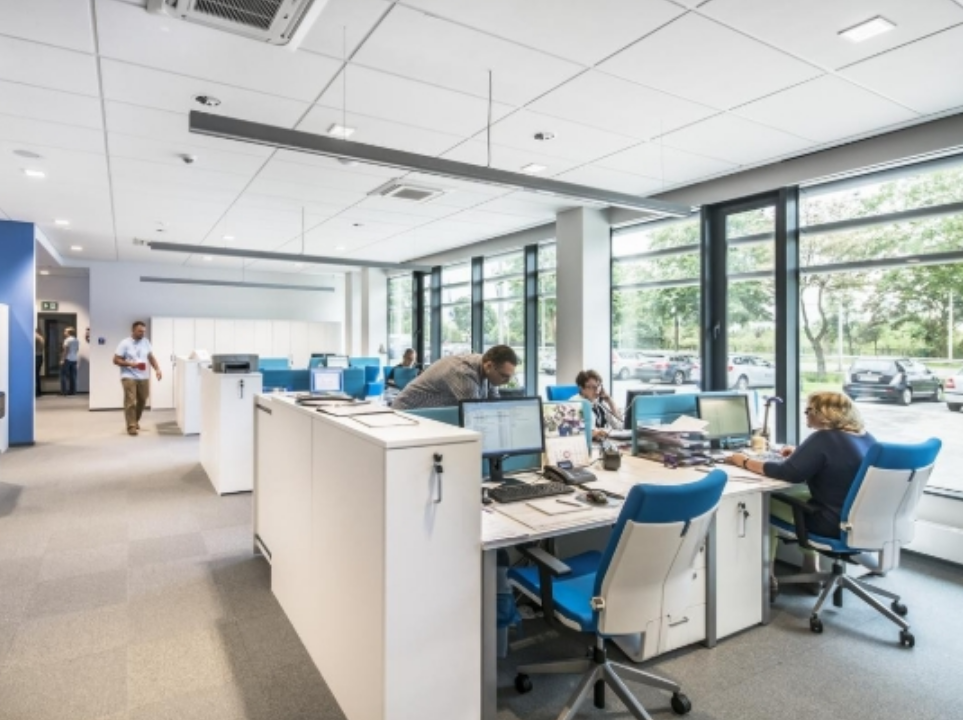

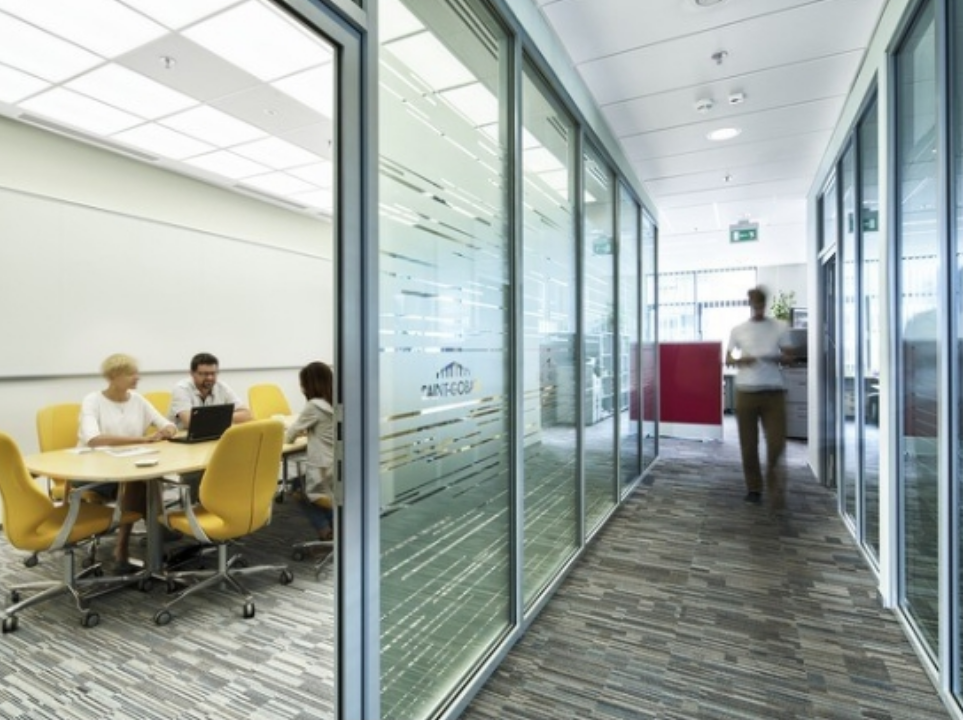

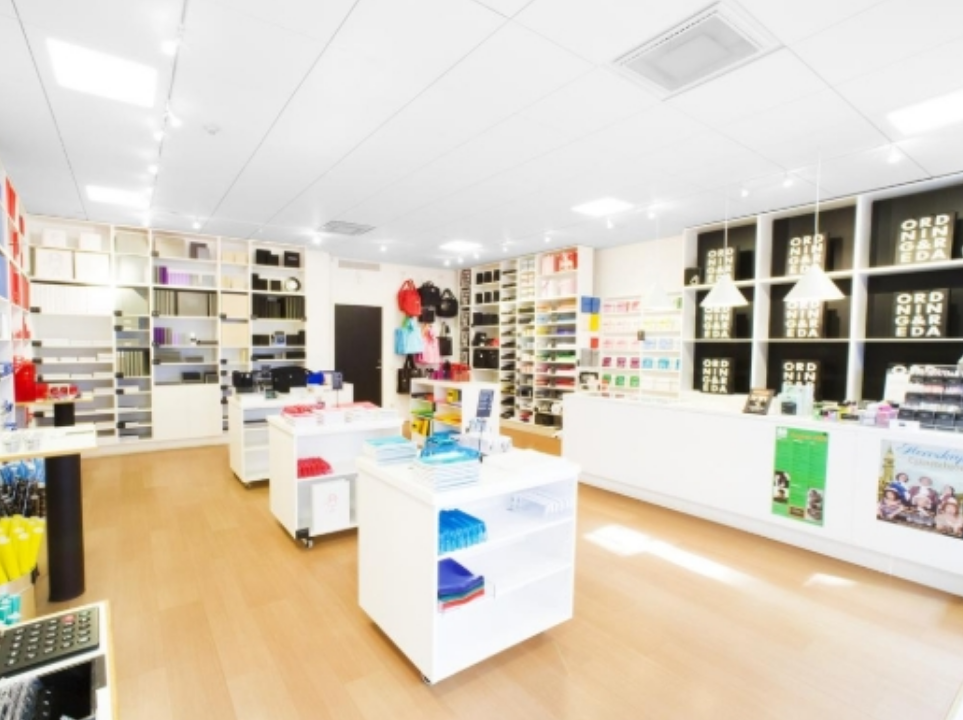

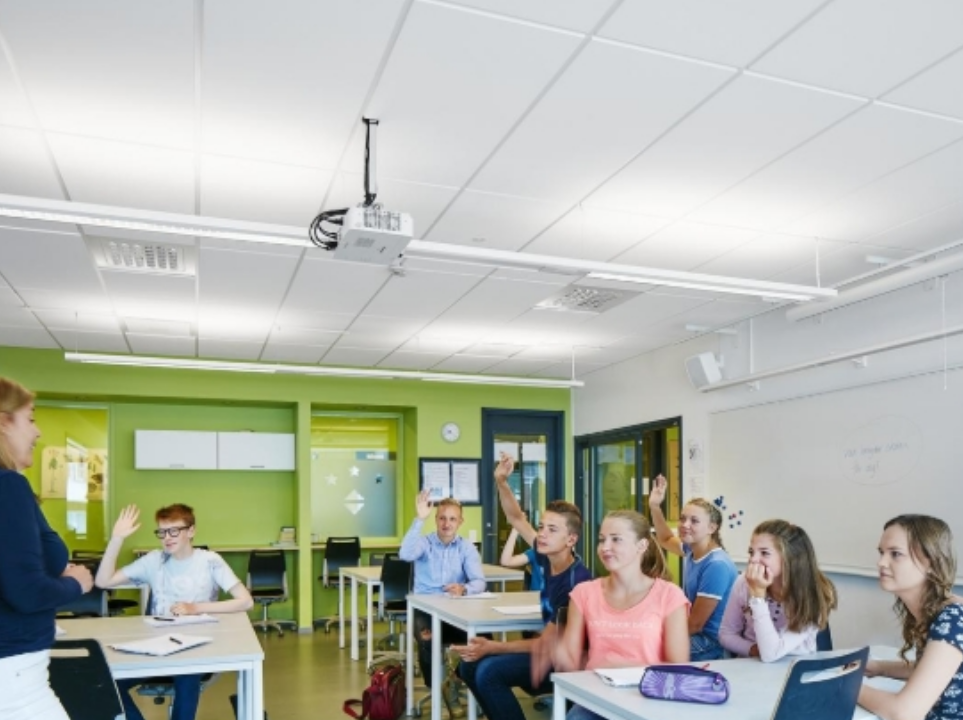

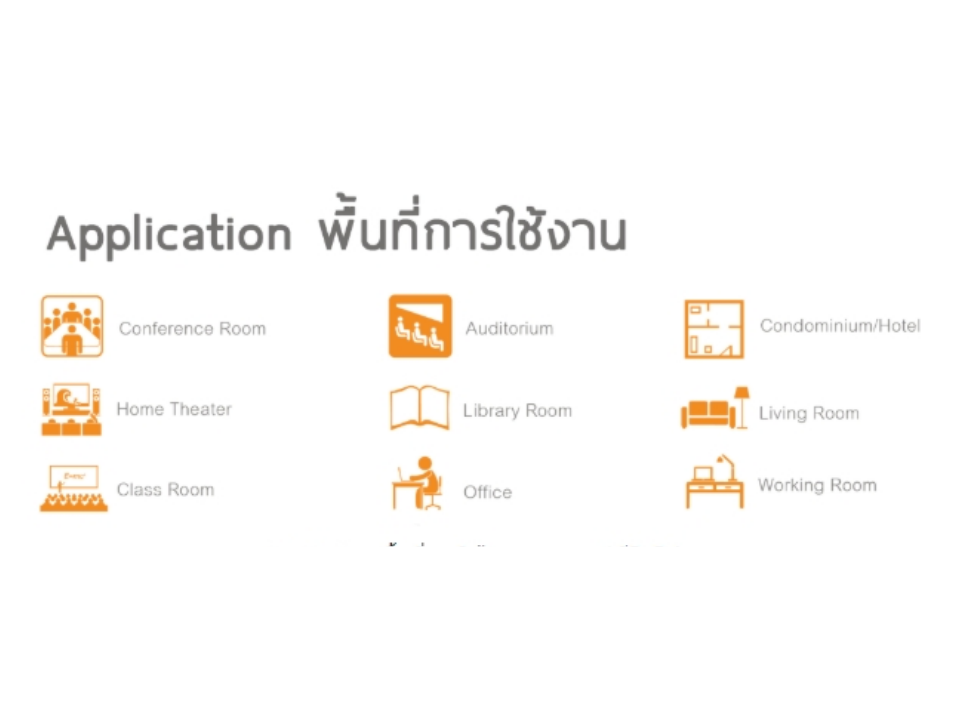

Application Areas for Trandar Ecophon
